The Lightfoot II
No Drill. No Tap. No Compromise.

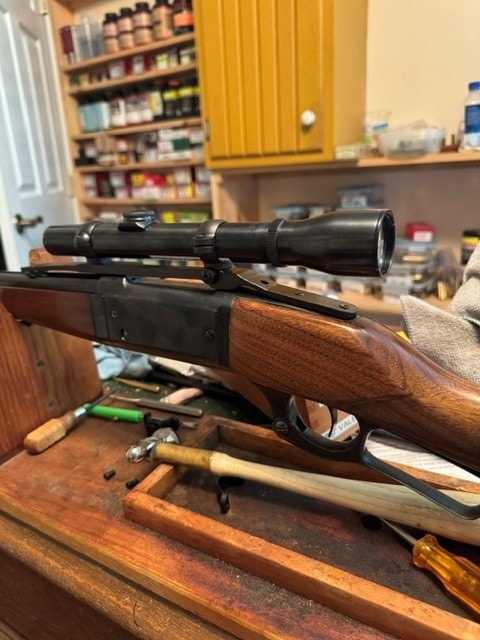

A precision scope mount for the Savage 99 lever-action rifle — engineered to hold zero, preserve your rifle, and install in minutes.
The Mount
Precision Without Permanent Modification

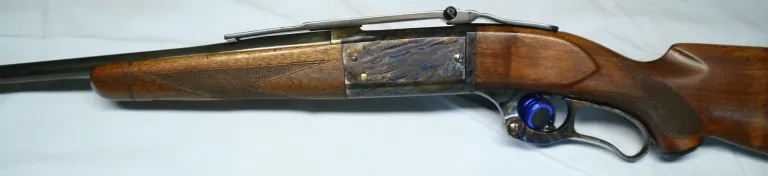

The Lightfoot II attaches using the factory rear tang screw holes and the existing rear sight dovetail — no gunsmithing required. CNC machined from solid steel by PIFMA LLC in Falls Church, Virginia, each mount is hand-fitted and inspected before shipping.
Specifications
Built to Last a Lifetime
Mount Configurations
Type 1 and Type 2 Mounting Options
The Lightfoot II is offered in five configurations to accommodate the full range of Savage 1895, 1899, and 99 receiver dimensions. The key measurement is the distance from the rear dovetail to the front of the receiver.
Leupold STD Ring Base
For Savage 99s with a 3" to 3 5/8" distance from the rear dovetail to the front of the receiver.
Picatinny Rail Base
For Savage 99s with a 3" to 3 5/8" distance from the rear dovetail to the front of the receiver.
Leupold STD Ring Base
For older Savage 1895s and 1899s with a 5" to 5 5/8" distance from the rear dovetail to the front of the receiver.
Picatinny Rail Base
For older Savage 1895s and 1899s with a 5" to 5 5/8" distance from the rear dovetail to the front of the receiver.
Special Order
For Savage 1895s, 1899s, and 99s with non-standard distances from the rear dovetail to the front of the receiver. Contact us to discuss your specific rifle.
The Type 1 mount is in production now. The Type 1A, Type 2, and Type 2A are currently in development and will enter production following testing.
Pricing
What It Costs
$20 domestic shipping within the United States
Shipping charges for other countries will vary. Please contact us for the rates that apply to your country.
How to Order
Place Your Order
Fill out the form below to place your order. Once submitted, choose your preferred payment method — PayPal or mail a check — and we will ship within two weeks of payment confirmation.
Fitting the Mount
Mounting Instructions
These instructions cover the Lightfoot II for Type 1 and Type 2 Savage 1895, 1899, and 99 receivers. Read all steps before beginning. Call us at 540-660-5234 if you need assistance.
Remove the Tang Plug Screws
Remove the two plug screws from the rear tang holes.
Remove the Rear Dovetail Sight
Drive out the rear dovetail sight from left to right using a brass punch or similar soft-metal tool.
Install the Dovetail Block
Locate the dovetail block from the parts package — it will have two .280" slot-head screws and one set screw installed. The block is slightly tapered; the bottom side will have a number stamped on it. Insert it from right to left and center it visually. If there is too much resistance, the dovetail slot may need light filing — a 6" Safe Sided Triangular File by Skinner Sights (skinnersights.com) works well. Once positioned, tighten the 1/16" Allen-head cone-tip set screw to lock the block in place.
Mount the Scope Mount
Position the mount and start all four mounting screws loosely — do not tighten any screw until all four have started. Install the tang screws first, then insert the front screws into the dovetail block. If needed, shift the block so the screws mate easily (remember to re-tighten the set screw if you move it). When all four screws are started, tighten the tang screws first, then the dovetail block screws. If you adjust the block position, remove the mount, tighten the set screw, and reinstall. Do not overtighten the dovetail block screws — the heads can shear.
Install Scope and Rings
The mount accepts Leupold Standard or Redfield Standard style rings. Use high rings for 30–40mm objective scopes, medium rings for smaller objective bells, and low rings for straight-tube scopes. Leupold rings are available at leupold.com or midwayusa.com.
Set the Windage Screws
The mount ships with two windage screws. If you are using a bore sighter, align these screws first — if they are off, you may run out of windage adjustment on your scope.
Questions or Feedback
Call us at 540-837-5234 if you need further assistance. We also welcome any comments about the mount or the installation process — your feedback helps us improve every production run.
Ready to Scope Your 99?
Limited production runs. Order directly through our secure store — ships within three weeks of payment confirmation.
